Verified VN factory

Prisma iPM System L

Sang Tao Industries Corporation · Lot A10, Tan Thoi Hiep Industrial Park, Hiep Thanh Ward, District 12, Ho Chi Minh City, Vietnam | MOQ 1 Pcs

(0) 0 Reviews 0 Orders 0 Wish listed

Lead time 15 - 30 days (estimated)

Customization OEM/ODM (MOQ 500) Customized logo (MOQ 500)

Shipping Sea freight · Air freight · Express

Request for quotation Verified factory

Quantity needed

Destination port

Out of stock

Request a quote for this product

WhatsApp Zalo Chat with seller

Factory verified on-site by our team
Samples ship in 5–7 days; the sample fee is credited to your first order
Pay through the platform — funds are held until you receive the documents

Product specifications

SupplierSang Tao Industries Corporation

Minimum order quantity1 Pcs

In stock100 Pcs

Lead time

15 - 30 days (estimated)

Shipping

Sea freight · Air freight · Express

Product details

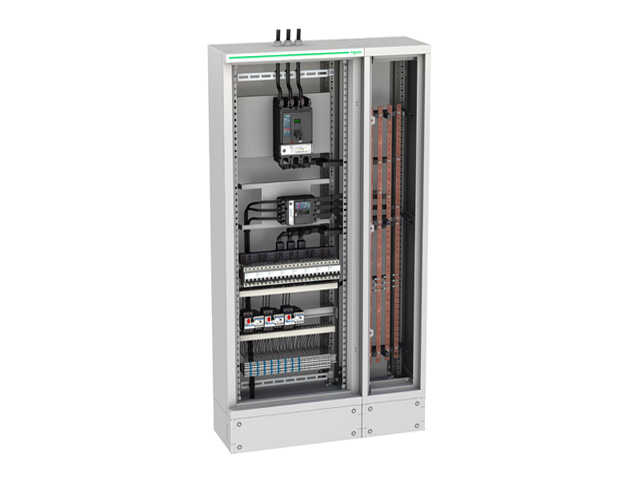

PRISMA IPM SYSTEM L

Prisma iPM is a type tested switchboard and complies with the IEC 61439-1 standard. Prisma iPM consists of 2 products within the range that integrate power distribution from a single source. As one of the most reputable manufacturers, Sang Tao JSC is committed to providing Prisma iPM with the highest quality.

1. Product information:

Prisma iPM: Kit solutions for tested and IEC 61439-1&2 compliant low voltage electrical distribution switchboards.
Prisma iPM system L: Solutions for wall-mounted enclosures for electrical up to 630A.

Applications

Industrial buildings, factories, workshops
Commercial centers, office buildings
Condominiums, hospitals, schools
Ports, airports

2. Technical data:

Electrical characteristics

Nominal rated current (A): 630
Rated insulation voltage Ui (V AC): 1000
Rated operation voltage (V AC): 690
Rated impulse withstand voltage (KV): 8
Frequency (Hz): 50/60
Main busbar rated current max. Ie (A): 630
Rated short-time withstand current Icw (KA/1s.): 25
Rated peak withstand current Ipk (KA): 53

Mechanical Characteristics

Overall height (mm): 300, 500, 700, 900, 1100, 1300, 1650, 1850
Number of vertical modules (1 module = 50 mm): 4, 8, 12, 16, 20, 24, 28, 32
Depth (mm): 235, 305
Width of enclosure for devices (mm): 600
Width of cable duct (mm): 300
Partitioning: 1
IP: 30/31/40/54
IK: 07/08/10

Applicable standards

Type test: IEC61439-1
Insulation materials inside of enclosures: IEC60695

Environment conditions

Operation: Indoor
Altitude max. (m): 2000
Temperature average (°C): 35 °C
Degree of pollution: 3

Others

Enclosure materials: Sheet metal
Painting: Epoxy resin powder electrostatic sprayed
Color: RAL 7047 (enclosure), RAL 9022 (functional unit)
Insulation materials inside of enclosure: High-temperature withstand, combustion self-prevent

Please contact us through our hotline or send us an e-mail for more information. We are very pleased to serve you!

Sang Tao Industries Corporation

Sang Tao Industries Corporation was established in 1992 and operates in three main areas:

1. Power Distribution and Industrial Control Systems

Providing solutions and products for the power distribution and industrial control systems industry, including:

Technical design, supply, and installation of equipment for power stations, substations (outdoor/indoor and kiosk substations), and medium voltage protective switchgear (35Kv/22Kv)
Low voltage electrical cabinets such as MSB, APFC, DB
Engine control systems (Motor Control Center - MCC)
PLC control panels, mimic, and SCADA systems

2. Electrical Cable Racks and Mechanical Systems

Providing a complete solution for electrical cable racks and mechanical systems, including cable tray ladder, trunking (cable ladder, cable tray, cable trunking systems)

3. Precision Sheet Metal Products

Supplying precision sheet metal products, including electrical cabinets of all kinds and 19" rack cabinets for data and telecom systems.

Our Advantages

Professional and dynamic management team with over 100 skilled workers.
Focus on innovative technology and unique design, closely following changing trends.
Commitment to quality, working processes, safety control, environmental protection, etc.

Sang Tao Industries Corporation's top priority is to focus on innovative technology and unique designs that closely follow changing trends. This, combined with successful R&D efforts and sound marketing strategies, demonstrates our professionalism in consulting, quoting, designing, manufacturing, and implementing commitments to quality, working processes, safety control, environmental protection, etc. It is why over 60% of our customers are multinational corporations with strict requirements for high technical and management levels.

Sang Tao Industries Corporation aims to become one of the leading companies in Vietnam by enhancing its competitive advantage in high-value core businesses and expanding new business opportunities in Southeast Asia and around the world.

ManufacturerBusiness type

from 101 - 200 peopleEmployees

1992Year established

FDI in VietnamMain market

View factory profile

Factory production workshop
