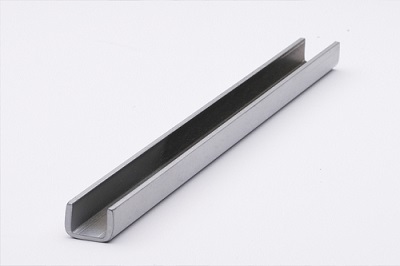

U-SHAPE STEEL

1. Application:

Used in construction of prefabricated factory buildings, structures with bearing structures

2. Specifications:

Size (mm)	Section (cm2)	Weight (kg/m)	Lookup quantity	X-X	X-Y	h	b	d	t	R	r	Ix (cm3)	Wx (cm3)	∑X (cm3)	SX (cm3)
80	40	4.5	7.4	6.5	2.5	8.98	7.05	89.4	22.4	3.16	13.30	12.80	4.75	1.190	1.31
100	48	4.6	7.6	7.0	3.0	10.90	8.59	174.0	34.8	3.99	20.40	20.40	6.46	1.370	1.44
120	52	4.8	7.8	7.5	3.0	11.30	10.40	304.0	50.6	4.78	29.60	31.20	8.52	1.530	1.54
140	58	4.9	8.1	8.0	3.0	15.60	12.30	491.0	70.2	5.00	40.80	45.40	11.00	1.700	1.67
160	64	5.0	8.4	8.5	3.5	18.10	14.20	747.0	93.4	6.42	54.10	68.30	13.80	1.870	1.80
200	76	5.2	9.0	9.5	4.0	23.40	18.40	1520.0	152.0	8.07	87.80	113.0	20.50	2.200	2.07

3. Physical properties:

Standard	Steel grade	Melting limit(N/mm2)	Break off limit (N/mm2)	Lengthiness (%)	Flexibility	Bending angel
TCVN 1651-85	CI	240 min	380 min	25 min	180°	0.5d
	CII	300 min	500 min	19 min	180°	3d
	CIII	400min	600 min	14 min	180°	3d
JIS G 3101	SS 400	235 min	400÷510	20 min (d<25mm)	180°	3d
JIS G 3112	SD 295A (SD 30)	295 min	440÷600	16 min (d<25mm)	180°	3d (d<=16)
	SD 295B	295 min	440 min	16 min (d<25mm)	180°	3d (d<=16)
	SD 390 (SD 40)	390÷510	560 min	16 min (d<25mm)	180°	5d
	SD 490 (SD 50)	490÷625	625 min	12 min (d<25mm)	90°	5d (d<=25)
BS 4449 (Reference)	Gr 250	250 min	287 min	22 min	180°	3d
	Gr 460	460 min	483 min	12 min	180°	5d (d<=16mm)
ASTM A615/ A 615M-94	Gr 40 (300)	300 min (Mpa)	500 min (Mpa)	11 min (d=10mm)	180°	3.5d (d<=16mm)
	Gr 60 (400)	400 min (Mpa)	600 min (Mpa)	9 min (d<=20)	180°	3.5d (d<=16mm)
				8 min(20<=d<=25)		5d (16<d<=30mm)
				7 min (d>25)		7d (d>30mm)
