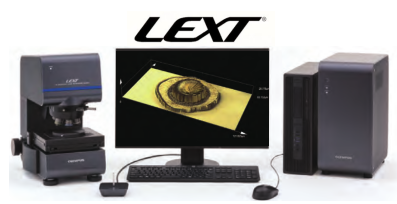

OLS5100 Microscope

TBB Global Technology Co., Ltd. · 117-119 Ly Chinh Thang St., Ward 7, District 3, Ho Chi Minh City, Vietnam | MOQ 1 Pcs
(0) 0 Reviews 0 Orders 0 Wish listed
Lead time 15 - 30 days (estimated)
Customization OEM/ODM (MOQ 1000)
Shipping Sea freight  ·  Air freight  ·  Express
Request for quotation Verified factory
Total price: (Tax: )
Out of stock
  • Factory verified on-site by our team
  • Samples ship in 5–7 days; the sample fee is credited to your first order
  • Pay through the platform — funds are held until you receive the documents
Product specifications
SupplierTBB Global Technology Co., Ltd.
Minimum order quantity1 Pcs
In stock100 Pcs
Lead time
15 - 30 days (estimated)
Shipping
Sea freight · Air freight · Express
Product details

OLS5100 MICROSCOPE

TBB Global Technology Co., Ltd. is the exclusive distributor for Olympus microscopes in Vietnam, pleased to bring genuine and quality OSL5100 Microscopes.

Technical Specifications

Model

  • OLS5100-SAF
  • OLS5100-SMF
  • OLS5100-LAF
  • OLS5100-EAF

Total magnification

54x - 17,280x

Field of view

16 μm - 5,120 μm

Measurement principle

Optical system

Reflection-type confocal laser scanning laser microscope

Reflection-type confocal laser scanning laser-DIC microscope

Color

Color-DIC

Light receiving element

Laser: Photomultiplier (2ch)

Color: CMOS color camera

Height measurement

Display resolution

0.5 nm

Dynamic range

16 bits

Repeatability n-1 *1 *2 *6

  • 5X: 0.45 μm
  • 10X: 0.1 μm
  • 20X: 0.03 μm
  • 50X: 0.012 μm
  • 100X: 0.012 μm

Accuracy *1 *3 *6

0.15 + L/100 μm (L: Measuring length [μm])

Accuracy for stitched image *1 *4 *6

10X: 5.0+L/100 μm, 20X or higher: 1.0+L/100 μm (L: Stitching length [μm])

Measurement noise (Sq noise) *1 *5 *6

1 nm [Typ]

Width measurement

Display resolution

1 nm

Repeatability 3 n-1 *1 *6

  • 5X: 0.4 μm
  • 10X: 0.2 μm
  • 20x: 0.05 μm
  • 50X: 0.04 μm
  • 100X: 0.02 μm

Accuracy *1 *3 *6

Measurement value +/- 1.5%

Accuracy for stitched image *1 *3 *6

10X: 24+0.5L μm, 20X: 15+0.5L μm, 50X: 9+0.5L μm, 100X: 7+0.5L μm (L: Stitching length [mm])

Maximum number of measuring points in a single measurement

4096 x 4096 pix

Maximum number of measuring points

36 Mpix

XY stage configuration

Length measurement module

  • NA
  • NA

Operating range

100 x 100 mm

Motorized

100 x 100 mm

Manual

300 x 300 mm

Motorized

100 x 100 mm

Motorized

Maximum sample height

100 mm

30 mm

37 mm

210 mm

Laser light source

Wavelength

405 nm

Maximum output

0.95 mW

Laser class

Class 2 (IEC60825-1:2007, IEC60825-1:2014)

Color light source

White LED

Please contact us through our hotline or send us an e-mail for more information. We are very pleased to serve you!
