STM7 Microscope

TBB Global Technology Co., Ltd. · 117-119 Ly Chinh Thang St., Ward 7, District 3, Ho Chi Minh City, Vietnam | MOQ 1 Pcs
(0) 0 Reviews 0 Orders 0 Wish listed
Lead time 15 - 30 days (estimated)
Customization OEM/ODM (MOQ 1000)
Shipping Sea freight  ·  Air freight  ·  Express
Request for quotation Verified factory
Total price: (Tax: )
Out of stock
  • Factory verified on-site by our team
  • Samples ship in 5–7 days; the sample fee is credited to your first order
  • Pay through the platform — funds are held until you receive the documents
Product specifications
SupplierTBB Global Technology Co., Ltd.
Minimum order quantity1 Pcs
In stock100 Pcs
Lead time
15 - 30 days (estimated)
Shipping
Sea freight · Air freight · Express
Product details

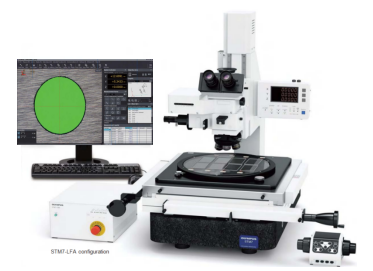

STM7 MICROSCOPE

TBB Global Technology Co., Ltd. is the exclusive distributor for Olympus microscopes in Vietnam, pleased to bring genuine and quality STM7 Microscopes.

Technical Specifications

Small stage

STM7-SF

Midsize stage

STM7-MF

Large stage

STM7-LF

Microscope body

Focus:

  • Vertical movement range: 175 mm
  • Maximum measurable height: 120 mm (with measurement objective) 175 mm (with metallurgical objective)
  • Z-axis measurement resolution: 0.1 μm
  • Z-axis drive method: Manual coaxial fine/coarse focusing knobs

Illumination

LED illumination:

  • White: for reflected light illumination
  • Green: for transmitted light illumination

Observation tube

MM6-ETR-1-5 Erect image trinocular tube (100: 0/0: 100)

Eyepiece (F.N.22)

  • MM6-OCC10X (with cross hairs)
  • MM6-OC10X

LED unit

  • White color (reflected): MM6-ILW
  • Green color (transmitted): MM6-ILG

Stage

STM7-CS100

STM7-CS200

STM7-CS300

Measuring range

  • X-axis 100 mm, Y-axis 100 mm
  • X-axis 200 mm, Y-axis 200 mm
  • X-axis 300 mm, Y-axis 300 mm

Measurement accuracy (L: measuring length)

  • (3 + 2L/100) μm
  • (3 + 4L/200) μm
  • (3 + 6L/300) μm

Accuracy assurance weight

  • 6 kg
  • 10 kg
  • 15 kg

Counter

STM7-DI

Number of axes

Three

Unit

μm/mm/inch/mil

Minimum resolution

0.1 μm

Control box

STM7-CB

Hand switch

STM7-HS

Focus controller

-

Interface cable

-

Anti-vibration plates

STM7-VI

Power cable

UYCP

Dimensions (W x D x H)

  • 466 x 583 x 651 mm
  • 606 x 762 x 651 mm
  • 804 x 1024 x 686 mm

Weight

  • 84 Kg
  • 152 Kg
  • 277 Kg

Power consumption

  • 100-120/220-240 V ~ 50/60 Hz, 0.3 A/0.2 A
  • 100-120/220-240 V ~ 50/60 Hz, 0.3 A/0.2 A
  • 100-120/220-240 V ~ 50/60 Hz, 0.3 A/0.2 A

Objectives

BF (Bright field)

  • MM6C-KMAS
  • Illumination: U-5RES-ESD
  • Nosepiece: MPLFL5X, 10X, LMPLFLN20X, 50X, 100X

Metallurgical objectives

BF (Brightfield) / DF (Darkfield)

  • MM6C-RLAS
  • Illumination: U-5BDRES-ESD
  • Nosepiece: LMPLFLN5XBD, 10XBD, 20XBD, 50XBD, 100XBD

Please contact us through our hotline or send us an e-mail for more information. We are very pleased to serve you!
